TED, Tracking Energy Diagnostics
Feel the heartbeat of your machines

Avoid problems with critical assets, prevent downtime with smart algorithms and anomaly detection

Measurement

24/7 Measurement with sensors

Smart Algorithms

Signature and fingerprints of failure

Anomaly Detection

For immediate action

Dashboard

24/7 Machine and energy levels control

Alerts

To act immediately

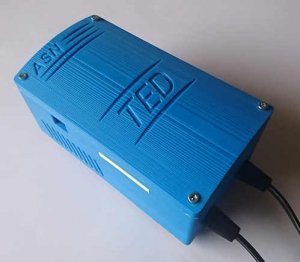

Measure: 24/7 heart rate monitoring of your motors

condition monitoring motor energy diagnostics

TED monitors the most common causes of damage
The TED sensors measure the causes by which the induction motor can break / wear:
- Imbalance
- Bearing defects
- Damaged / broken rotor beams
- Powerline: voltage swells and dips

Technical highlights:
- Real-time asset energy healthcare
- 1/3 phase voltage and power monitoring
- 50/60Hz powerline frequency tracker (±1mHz resolution)
- State-of-the art Harmonics tracker to 50th order
- Dip/Swell tracker
- Asset fingerprint

TED consists of the following sensors:
- Acceloremeter
- Gyroscope
- Microphone
- Environmental sensors

Connectivity
- WiFi
- Bluetooth Low Energy (BLE)
- LoRa
- RS485
- USB
4G en 5G; ASN is partner in the rollout of 5G by KPN

Find out how TED helps you to avoid downtime

Your details will remain strictly confidential, and will not be shared with any other third parties without your prior consent. See the disclaimer for more information.

Analytics: Signature and Anomaly Detection

Smart Algorithms

Every motor has its signature. Take advantage of monitoring:

Does the motor work under ideal conditions
Avoid energy waste
Grip on maintenance:
- Timely maintenance, no downtime
Grip on capacity maintenance staff
Act on the beginnings of failure

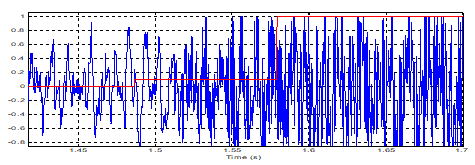

Anomaly Detection

Each type of failure mechanism has its own fingerprint. Take advantage of signaling:

Intervene before problems get worse:
- Prevent loss of the engine or even downtime of the entire production process
- Schedule repair at least adverse time
Prioritize maintenance tasks
Alert when immediate action is needed

TED Analytics:

(Click on + to learn more)

Powerline health checker

Why?

The energy grid frequency is 50Hz in Europe, and 60Hz in the US and 50 / 60Hz in Japan.
To meet the energy requirements, several generators are needed.
Every generator has a small error with its frequency generator.
The frequency of all generators must be very tight to work synchronously.
Combined power (voltage and current) suffers until a small frequency wave.
To accurately perform advanced harmonics analysis, the frequency must be precisely tracked.
To determine the general health of the energy, the frequency must also be tracked precisely.
Network operators track and correct the network frequency with a ± 1mHz resolution.
This is also the accuracy with which TED does its work.

The challenge for energy managers

Balance between demand and total production / delivery. If the demand exceeds the generation, the frequency decreases, but if the generation exceeds the demand, the frequency increases

Highlights

Real-time Voltage and Stream data capture via TED module
State-of-the-art feature-extraction ML-algorithms
Stream recorded data via SDF data files to ANNA application
Line frequention tracking (resolution 1 mHz) and alert
Current harmonic tracking up to 50th harmonic
Voltage harmonic monitoring up to 50th harmonic (optional)
- 50/60 Hz voltage Dip en Swell tracking and alert

Benefits

Get a detailed fingerprint of the features of your machine
Follow changes in performance
Identify the first signs of wear on parts
Predict and prevent outages

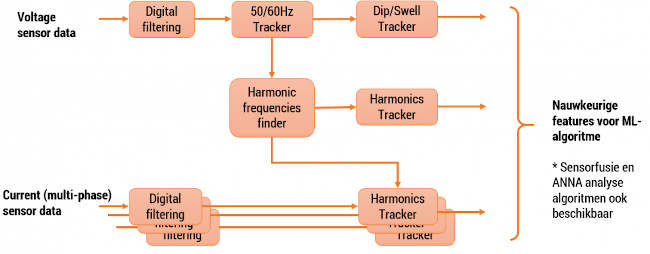

Feature extraction for ML algorithms
Stay within the IEC regulations

Dips & Swells

Benefits

Get a detailed fingerprint of the features of your machine
Monitor changes in performance
Identify the first signs of wear on parts
Predict and prevent outages
Feature extraction for ML algorithms
Stay within the IEC regulations

MESA Motor Management

Motor Management via MESA (motor electrical signature analysis)

Flow analysis for motors and machines
Tracking and detection of damaged / broken rotor beams in AC induction motors
Estimation of the number of broken beams
Super fast data analysis of 12 seconds
Asset protection and Preventive maintenance

Highlights

Analysis of the electrical profile of an motor (MESA) for monitoring the health
CT flow profiles filtered and analyzed
FFT analysis (harmonic analysis) used to identify sources of failure
Errors (e.g. Broken rotor beams, breakdown in stator windings) ensure additional frequency components (harmonic and other frequencies) to appear
ASN TED implements an adaptive “FFT zoom in” algorithm

Benefits

This means that we can properly identify the problem area
This allows the engineer to do his job in a focused way
The factory will be shut down for less time

Vibration

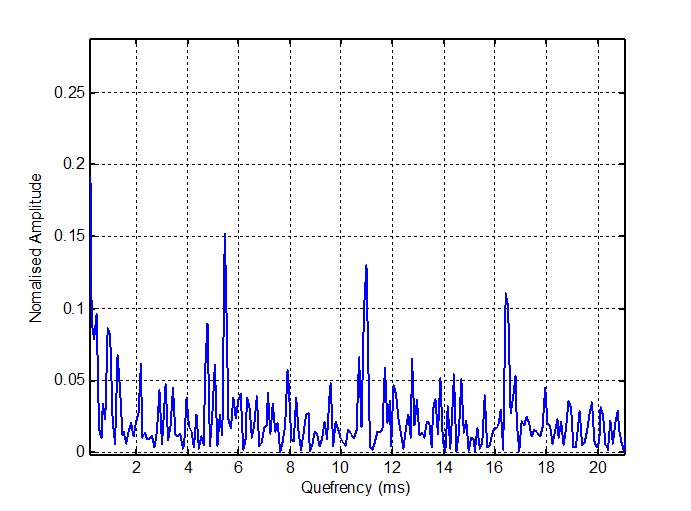

Motor ball bearing vibration analysis

Accurate estimates of Velocity and Displacement vs. Frequency from acceleration data

Audio Diagnostics (Optional)

TED Vibration & ball bearing

The condition of a motor can also be determined by ‘listening’ to the noise of the motor
Safe contactless solution (microphones placed around a motor)

Detect wire breaks early
Detect machines crashed early
Library with fingerprint profiles of known errors
Built over many years in collaboration with international partners
Problem location algorithm

Dashboard and Alerts

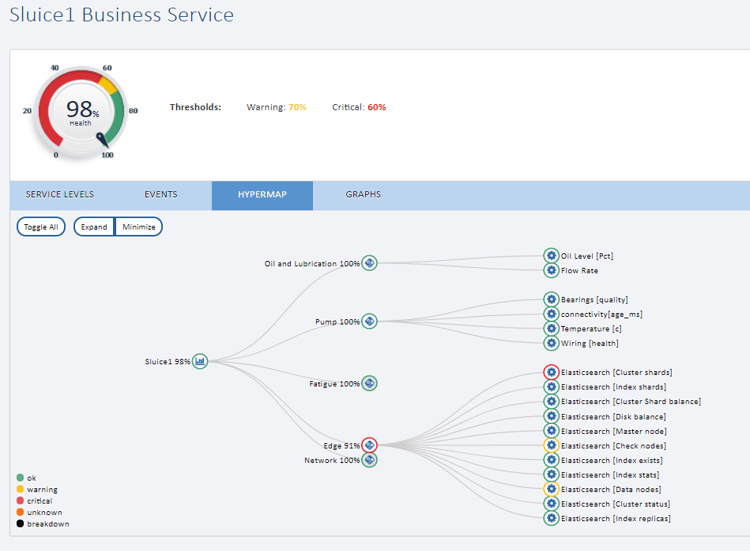

Dashboard

24/7 monitoring
All assets at a glance
Performance Metrics for the efficiency of your motor
Energy Metrics:
- Avoid waste
- For optimum purchasing energy
Shows the actual levels
Shows the cause of damage

Alerts

Alerts when levels reach certain limits
Signals malfunctions, immediate action possible

Why choose ASN?

All-in-one solution

from hardware, connectivity, analytics to alerts and dashboard

Knowledge of physical properties and mathematics

We actually know the physical properties of processes. So we not only measure and then see a nice graph appear, we actually know what the underlying processes mean

Science: 82 IP blocks

Custom algorithms, based on 20+ years of experience: 82 IP scientific blocks that are directly applicable for online data streams

Internationally renowned party

We are knowledge partner of world market leaders. For example, we are the only Dutch DSP knowledge partner of ARM; With 90% of IoT devices running on ARM cores, ARM is by far the world market leader. Another example: ASN is part of the KPN 5G Lab Port of Rotterdam

Our collaboration in Lab core teams

We bring the latest technology to the market

ASN uses the latest technology developed by Blue Chip companies. Sometimes these products have just appeared on the market. Even more, we have also developed our products before the product was on the market.

The big advantage is that ASN works with technology that actually works: it takes a long time for companies that start from the bottom up to get a first prototype, if the design doesn’t end up in “developer’s hell”.

ASN makes improvements based on the latest version, working closely with the core teams of its suppliers.

Contact

Advanced Solutions Nederland B.V.

Maanlander 47
3824 MN Amersfoort
The Netherlands

Tel: +31 624939718

General enquiries: info@advsolned.com
Technical support: support@advsolned.com
Sales enquiries: sales@advsolned.com
